Product Display

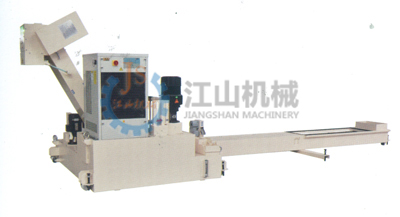

Drum filter type scraper type + high pressure water tank device
Drum filter type scraper type + high pressure water tank device
●Various filters and drum filter chip conveyors are combined to make them a highly accurate cooling filter.
●Combine the high voltage who wants the device into one.
●Multiple types of cooling pumps can be configured
●Increase filtration capacity and extend coolant life

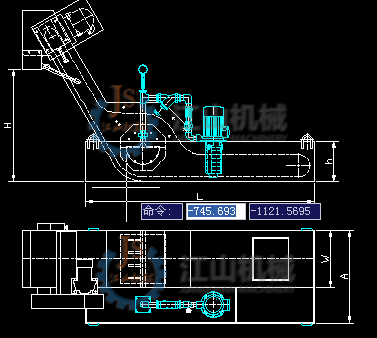

Performance
  W 401 .8,  601 .8,  801 .8     c   2500 or more
   h   280 or more     a     W-106.4 or less
  H     460 or more     b   200 or more
  A
   W+500 or more     e
 Set up as per the capacity of
 the high pressure pump
  B
   2000 or more     f
 Set up as per the capacity of the
 high pressure pump

Size of each part
Geared Motor 0.2KW 4P AC 220V/380V
Chain   C2062H Pitch 38.1mm
Conveying Rate   1.3m/min
Conveying Capacity W=601.8 0.06m3/h
Safety Device rorque limiter+approaching switch
Scrap Requirements Little non-magnetic scrap (less than 50mm)
Filter Screen  80 mesh (50um)
Precision Filtration  20um(high pressure part)
 Optional Device
 200L/min
40L/min
0.05MPa or more
W=401 .8		 300Umin
40L/min
0.05MPa or more
W=601 .8		 400L/min
40Umin
0.05MPa or more
W=801 .8
Optional Device Electric control box,coolant pump,nilometer,oil-water separator


Pre：PDM filter backwash type chain plate
Next：Magnetic scraper
