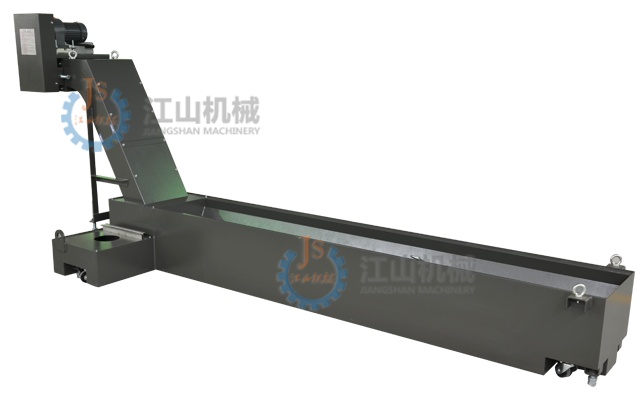

50、60 scraper
●Suitable for fine chips of iron and cast iron (less than 30mm).
●Can be discharged length 10-20 meters. |
|
80 scraper
●Suitable for fine chips of iron and cast iron (less than 75mm).
●Can be delivered in length of 30 meters. |
 |
| |
|
|
 |
|
 |
| |
|
|
| Performance |
|
Performance |
| Geared Motor |
0.2KW 4P AC 220/380V
|
| Chain |
C2052H Pitch 31.75mm
|
| Conveying Speed |
0.9m/min[50Hz],1 .1m/min [60Hz]
|
| Conveying Capacity |
W=300時 0.02r-T13/h
|
| Safety Device |
Forque limiter+LS |
| Scrap Objects |
Fine scrap(less than 30mm) |
Optional Components
|
Control panel, CE control panel
Sleeve shaft type geared motor (50
11 type)
Torque limiter+ Approaching switch
type safety device
Coolant recovery device (for recovering
of coolant mixing with scrap)
Wedge type metal wire(to increase
filtering precision) |
|
|
Geared Motor
|
0.4KW 4P AC 220/220V 0c=00L=15000 ；時
0.75KW 4P AC 220/380V o(=450. 600 L=20000 ；時
o（=OoL=15000以上
1.5KW 4P AC 220/220V a=450, 600 L=20000以上 |
| Chain |
C2082H Pitch 50.8mm
|
| Conveying Rate |
0.75KW時
4.Om/min [50Hz] ~ 4,8tm/min [60HZ] |
| Conveying Capacity |
0.75KW a =600 ,W=350時
0.2rT13/h [50Hz] |
| Safety Device |
Forque limiter |
| Scrap Requirements |
Short scraps (less than 75mm) |
| Optional Device |
Control panel, CE control panel
Torque limiter + proximity switch type safety device |
|
| |
|
|

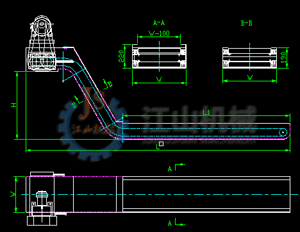

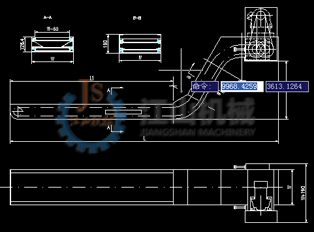

| Size of each part |
|
Size of each part |
| W |
250,300,350,400,450,500,550,600 |
| α |
300. 450，600，750(a linear type with a = 00 can also be made) |
| H |
a= 600 hours 231 or more |
| L |
10000 or less |
| L3 |
L3>W |
|
|
| W |
250 , 300, 350, 400, 450, 500, 550, 600, |
| α |
45° ,60° |
| H |
α =600 hours 400 or more |
| L |
30000 or more |
| L3 |
450 or more |
|
|
